Hand Pallet Truck
Made in Vietnam
Factory-direct hand pallet trucks from Bac Ninh, Vietnam -- CE certified, fully OEM customizable, and available from 1 sample unit. No middleman. No markups.
Factory Overview
Built at the Source.
Bac Ninh, Vietnam.
Our factory in Bac Ninh Province operates one of Vietnam's most capable hand pallet truck production lines -- 30 km from Hanoi, 100 km from Haiphong port, and fully CE certified.
-
Location: Bac Ninh Province, Vietnam -- 30 km from Hanoi, 100 km from Haiphong port
-
Floor Area: 16,000 m² production facility
-
Workforce: 120 skilled workers on-site
-
Monthly Capacity: 1,800 units per month
-
Load Range: 2.0 / 2.5 / 3.0 / 3.5 tons available
-
Certification: CE certified -- compliant for EU and US markets
-
OEM / Custom: Custom logo, private label packaging, and structural drawing design available
Custom Manufacturing
Built to Your Drawings.
Or Your Requirements.
Whether you have finalized engineering drawings or just a concept, DEWIN's team works with you from the first file to the final shipment -- matching your project to the right factory, the right process, and the right tolerances.
Start with Your Drawings
Submit 2D/3D files in any format -- DXF, DWG, STEP, IGES, PDF. Our engineers review for DFM issues before quoting.
Or Describe What You Need
No drawings yet? Share your functional requirements and target specs -- we'll recommend the right process, material, and factory.
No drawings yet? Describe your requirements -- we'll guide the rest.
Wheel Configuration Options
Choose the Right Wheel for Your Floor
Each hand pallet truck model is configurable with two independent wheel positions -- rear drive wheel and front load wheel -- in three material options.
| Model Number | Rear Drive Wheel | Front Load Wheel | Best For | Noise Level |
|---|---|---|---|---|
| HPT-2500-NN | Nylon | Nylon | Dry warehouse, general use | Standard |
| HPT-2500-NP | Nylon | Polyurethane | Smooth floors, light noise reduction | Low |
| HPT-2500-PP | Polyurethane | Polyurethane | Quiet environments, retail, cold storage | Very Low |
| HPT-2500-PN | Polyurethane | Nylon | Quiet drive, standard load wheel | Low |
| HPT-2500-RR | Rubber | Rubber | Wet floors, outdoor ramps, food processing | Medium |
| HPT-2500-RN | Rubber | Nylon | Wet-area drive, dry load zone | Medium |
| HPT-2500-RP | Rubber | Polyurethane | Wet floors with noise-sensitive areas | Low-Medium |
| HPT-2500-NR | Nylon | Rubber | Dry drive, wet load zone | Standard |
| HPT-2500-PR | Polyurethane | Rubber | Quiet drive, wet load floor | Low |
All models available in 2.0T / 2.5T / 3.0T / 3.5T load ratings. Custom configurations available on request.
Technical Specifications
Standard Model
HPT-2500
Key dimensions and performance data for the standard 2,500 kg model. Custom fork lengths, widths, and load ratings available on request.
| Parameter | Value | Note |
|---|---|---|
| Max Load Capacity | 2,500 kg (5,511 lbs) | Also available: 2.0T / 3.0T / 3.5T |
| Fork Length | 1,150 mm | Custom lengths available |
| Overall Width | 685 mm | Standard EU/US pallet compatible |
| Fork Width (pair) | 160 mm each | -- |
| Min Fork Height (lowered) | 85 mm | Ground clearance |
| Max Lift Height | 200 mm | Hydraulic lift range |
| Turning Radius | 1,265 mm | Measured at tiller pivot |
| Product Weight | 55-65 kg | Varies by wheel configuration |
| Pump Cylinder Material | Steel (chrome-plated) | Corrosion-resistant |
| Frame Material | High-strength steel | Powder-coated finish |
| Tiller Handle | Ergonomic, 3-position | Raise / neutral / lower |
| Certification | CE (EU Machinery Directive) | Compliant for EU & US |
| Operating Temperature | -20°C to +60°C | Cold storage compatible |
Order & Delivery
MOQ, Lead Time & OEM Options
Minimum Order Quantity
No hidden tooling costs for standard configurations. OEM tooling quoted separately.
Lead Time
- Faster for standard configurations in stock
- Confirmed lead time provided at order placement
- 100% load-tested before shipment
Sea freight from Haiphong port. Door-to-door logistics available.
Private Label OEM
Sell under your own brand. We handle manufacturing -- you own the product identity.
- Your logo on the frame, pump, and packaging
- Custom color (RAL powder coat)
- Custom fork length and load rating
- Private label carton and documentation
- Structural drawing design available
- NDA signing available on request

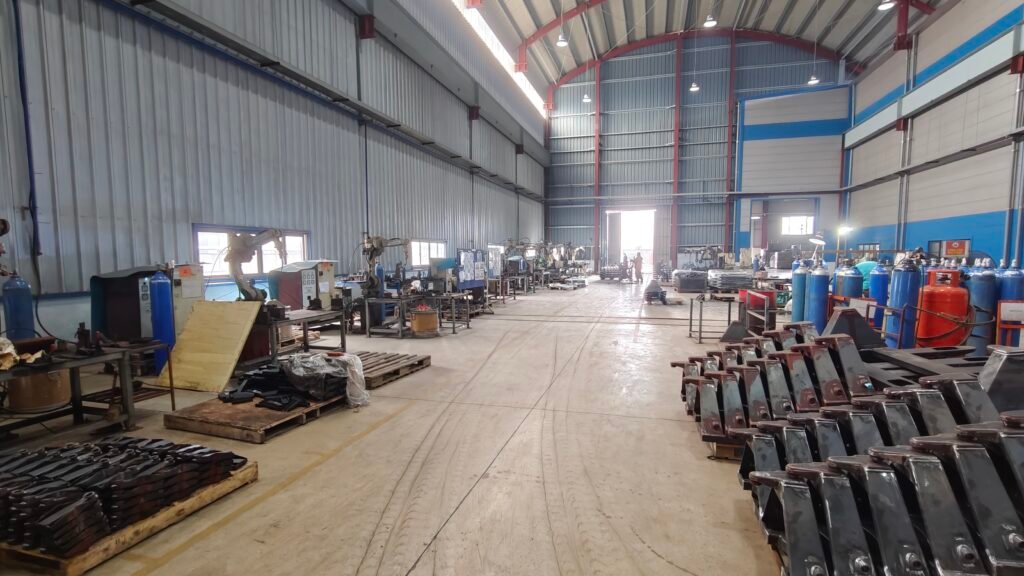

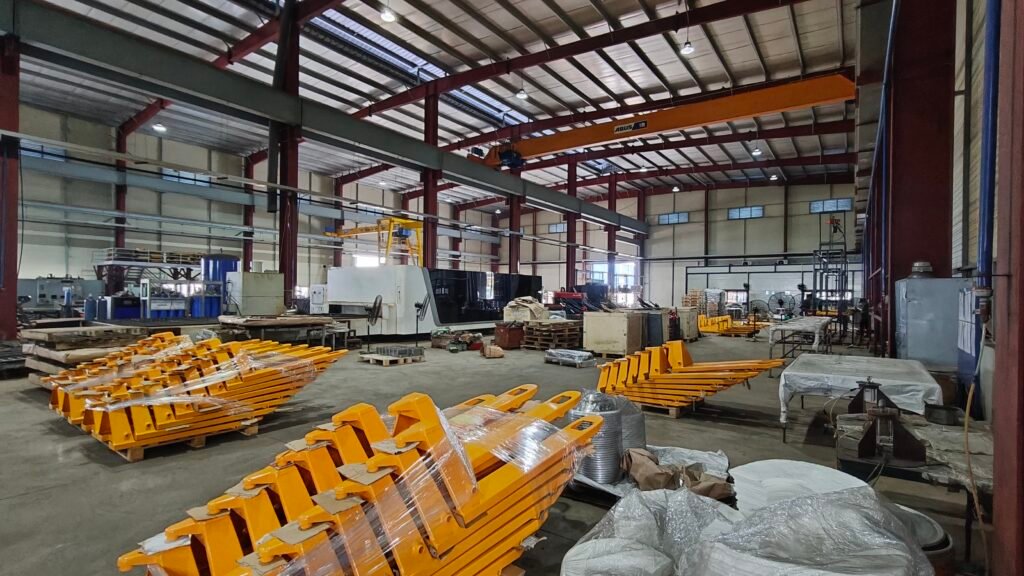

Factory Tour
Inside the Bac Ninh Facility
16,000 m² of dedicated production space. 120 workers. Every unit load-tested before it leaves the floor.
Quality Control
Zero Defects Leave
This Facility.
Every hand pallet truck undergoes a multi-stage quality inspection before it's packed for shipment. No exceptions.
-
01
Incoming Material Inspection
Steel grade, hydraulic cylinder, and wheel material verified against purchase spec before production starts.
-
02
In-Process Dimensional Check
Fork length, width, and lift height measured at key assembly stages. Deviations corrected before proceeding.
-
03
100% Hydraulic Function Test
Every pump cycled through full raise and lower range. Leak-free performance required before proceeding.
-
04
100% Individual Load Test
Every unit loaded to rated capacity (e.g., 2,500 kg) and held. No unit ships without passing this test.
-
05
Final Cosmetic & Packaging Inspection
Surface finish, label placement, and packaging integrity checked. CE documentation included with each unit.
Product Gallery
Hand Pallet Truck -- All Views
Standard HPT-2500 with polyurethane wheels. Custom colors and branding available.
Request a Quote
Get the Latest Price
in 24 Hours.
Tell us your quantity, preferred wheel configuration, and any OEM requirements. Our team at @dewintech.com will respond within 24 hours with pricing, lead time, and available customization options.
Include in your message for a faster quote:
