We often see clients struggle with severe project delays when their suppliers prioritize massive production runs over custom batches massive production runs 1. It is frustrating to watch critical deadlines slip away simply because a vendor lacks the agility to handle diverse requirements.
To evaluate HMLV capability, assess the supplier’s modular fixturing systems for quick changeovers and verify their workforce cross-training. You must also audit their quality documentation processes for traceability across diverse SKUs and ensure their setup cost structure supports small-batch viability without excessive premiums.
Let’s break down the specific operational indicators that separate agile manufacturing partners from rigid factories.
How can I verify that their production workflow is flexible enough for frequent welding changeovers?
In our Vietnam facility, we know that rigidity kills efficiency during custom project runs. You cannot afford downtime while machines sit idle waiting for engineers to configure new setups.
Verify flexibility by inspecting their use of universal tooling and modular welding tables that minimize downtime between geometries. Additionally, look for offline programming capabilities for robotics, allowing new parts to be simulated and prepared while the current production line remains active.
When sourcing for High-Mix, Low-Volume (HMLV) welding High-Mix, Low-Volume (HMLV) 2 Welding Procedure Specification 3, the physical setup of the factory floor tells you more than their marketing brochure. In our operations, we have found that the biggest bottleneck for HMLV is not the welding itself, but the time between welds. Traditional high-volume factories use "hard tooling" or dedicated jigs. These are custom-built for one specific part. While they are excellent for making 10,000 units of the same car chassis, they are disastrous for orders of 50 custom brackets. If you change the design, the jig becomes scrap metal.
The Importance of Modular Fixturing
You should specifically ask if the supplier uses modular 3D welding tables and universal clamping modular 3D welding tables 4 systems (like Siegmund or Demmeler systems). These systems work like industrial LEGO sets. They allow welders to reconfigure a workspace for a new part geometry in minutes rather than hours. A supplier relying on dedicated fixtures for small batches will pass those high tooling costs and long lead times on to you.
Robotic Agility and Offline Programming

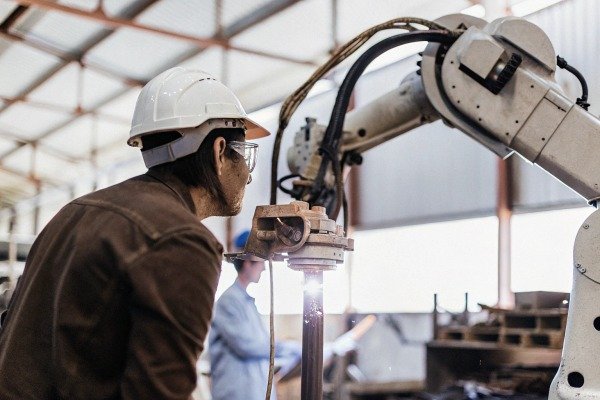

Automation is often misunderstood in HMLV. Many buyers assume robots are only for high volume. However, an agile supplier uses "offline programming." This allows offline programming 5 their engineers to program the robot for your new Part B on a computer while the robot is still welding Part A. If the robot has to stop moving to be taught a new path, that supplier is losing money and time.
Review the table below to spot the difference between a rigid supplier and a flexible one during your audit:
| Feature | Rigid High-Volume Supplier (Avoid for HMLV) | Flexible HMLV Partner (Preferred) |
|---|---|---|
| Fixturing Strategy | Dedicated, permanent jigs welded together. | Modular 3D tables with reusable clamps and bolts. |
| Changeover Time | Hours to days (requires fabrication). | Minutes (requires reconfiguration). |
| Robotic Programming | Teach pendant (robot stops working to learn). | Offline software (simulation happens during production). |
| Inventory Logic | Large batches to amortize setup time. | Single-piece flow or small Kanban lots. |
By focusing on these workflow mechanics, you ensure your supplier can switch from a stainless steel medical frame to a mild steel structural support without halting their entire operation.
What quality control systems should I look for to ensure consistency across my diverse small-batch orders?
We have managed enough complex exports to know that one welding defect in a small batch can ruin an entire shipment. Inconsistent quality is a risk you cannot take when every part counts.
Look for a Quality Management System that utilizes digital weld mapping and real-time electronic travel cards for every unique SKU. Effective suppliers use AI-enhanced visual inspections and enforce strict "first-article" protocols to catch deviations immediately, ensuring consistency regardless of batch size.
Quality control in an HMLV environment is significantly harder Quality control 6 than in mass production. In mass production, if the first part is good, the next thousand are usually good. In HMLV, every batch—or sometimes every part—is a "first part." This means the margin for error is zero. When we audit suppliers for our US clients, we look for systems that prevent "tribal knowledge" from driving quality. You do not want a shop where only "Old Joe" knows how to weld your specific alloy correctly.
Digital Traceability and Documentation
Paper travelers (the sheets that follow a part through the factory) are dangerous in HMLV. They get lost, stained, or misread. You need a supplier who uses a digital Manufacturing Execution System (MES) Manufacturing Execution System (MES) 7. digital Manufacturing Execution System 8 This ensures that the specific Welding Procedure Specification (WPS) for your part pops up on a screen at the welding station. It guarantees the welder knows exactly which amperage, voltage, and filler material to use for that specific batch, even if they haven't seen that part in six months.
The "First Article" Discipline
In high-mix orders, the "First Article Inspection" (FAI) is First Article Inspection 9 the most critical step. You must verify that the supplier performs a full dimensional and visual check on the very first piece of every new setup before running the rest of the small batch. If they skip this to "save time," they are gambling with your inventory.
Non-Destructive Testing (NDT) Strategy
For diverse orders, the NDT strategy must be flexible. A high-volume shop might use automated X-ray for everything. An HMLV shop needs a mix of Dye Penetrant (PT), Magnetic Particle (MT), and Visual Inspection (VT) capabilities in-house. Outsourcing every test adds days to your lead time.
Ask your potential supplier how they handle these specific quality documentation elements:
| Document Type | Purpose in HMLV | Red Flag to Watch For |
|---|---|---|
| WPS (Welding Procedure Spec) | Instructions on how to produce a sound weld. | "We don't write them down; our welders know what to do." |
| PQR (Procedure Qualification Record) | Proof that the WPS actually works and has been tested. | No PQR available for exotic alloys or critical joints. |
| Weld Map | A diagram showing exactly where each weld goes and who welded it. | No record of which welder worked on which batch. |
| MTR (Material Test Report) | Proof of raw material chemical composition. | "We buy steel from the local scrapyard without certs." |
| Calibration Log | Records showing welding machines are accurate. | Expired calibration stickers on power sources. |
Traceability prevents liability. If a weld fails in the field three years from now, you need to know exactly which batch it came from and who welded it. Only a robust digital system can handle that complexity for hundreds of different part numbers.
How do I assess if their engineering team can handle the technical complexity of my high-mix welding projects?
When we co-develop parts with US clients, we see that basic operators often fail at interpreting complex geometric needs. You need engineers who solve problems, not just follow buttons.
Assess their engineering capability by reviewing their experience with Design for Manufacturability (DFM) specifically for welding distortions in complex geometries. Validating their use of distortion simulation software and their history with exotic materials confirms they can manage technical hurdles in high-mix projects.
In high-volume manufacturing, the engineering is done once, upfront. In HMLV, engineering happens every day. Every new order is a new engineering challenge. This places a massive burden on the supplier's technical team. We have found that the most common failure point isn't the welder's hand, but the engineer's plan.
Welding Engineering Expertise
You should verify if the supplier has a certified Responsible Welding Coordinator (RWC) or staff with International Welding Engineer (IWE) qualifications. International Welding Engineer 10 These experts understand metallurgy. They know that welding a thick stainless steel plate to a thin one requires a specific heat input strategy to prevent warping. Without this level of knowledge, a supplier will guess, leading to parts that are out of tolerance due to thermal distortion.
Design for Manufacturability (DFM) Feedback
A proactive HMLV supplier will not just accept your drawing; they will challenge it. If your design calls for a weld in a spot that is impossible to reach with a torch, they should tell you before they start. We encourage our clients to test this during the RFQ phase. Send a drawing with a deliberate, minor "trap"—like a tight corner weld—and see if their engineering team catches it. If they quote it without comment, they likely aren't analyzing your prints deeply enough.
Managing Distortion in Complex Assemblies

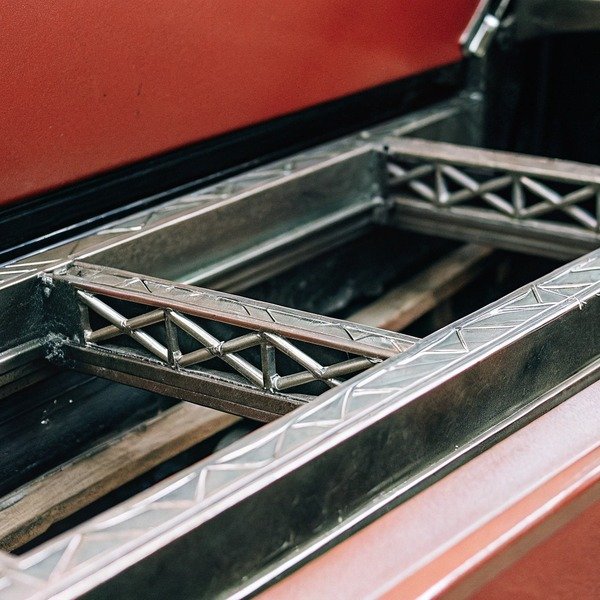

High-mix parts often feature complex geometries—like the grid-like aluminum frame in the example image. These structures act like springs when heated; they twist and pull. A capable supplier uses simulation software (like Simufact Welding or others) or has a proven methodology for sequencing welds to balance the stress. They should be able to explain their "clamping strategy" and "welding sequence" (e.g., welding from the center out) to ensure the final frame is square and flat.
Material Versatility
HMLV often involves "exotic" materials. One day it’s 304 Stainless, the next it’s 6061 Aluminum or Inconel. Check if their team understands the isolation requirements. You cannot grind carbon steel in the same bay where you weld stainless steel without risking cross-contamination and rust.
Key Engineering Questions to Ask
- "Do you use pre-setting?" (Bending parts slightly in the opposite direction so they pull straight after welding).
- "How do you separate ferrous and non-ferrous material processing?"
- "Can you provide a DFM report before production starts?"
If their engineering team acts merely as a mailbox for drawings, they are not ready for the complexity of high-mix sourcing.
What questions should I ask about setup costs to ensure my low-volume orders remain commercially viable?
We understand that high setup fees can destroy the margin on your low-volume orders. Hidden costs often turn a viable prototype run into a financial burden.
Ask for a transparent breakdown of the setup-time-to-run-time ratio and inquire about amortized tooling costs across future batches. Ensure they offer tiered pricing models that do not penalize low volume with prohibitive minimum order quantities (MOQs) or excessive administrative fees.
The economic model of HMLV is fundamentally different from mass production. In mass production, setup costs are absorbed by volume. In HMLV, the setup cost can sometimes exceed the material cost. To protect your bottom line, you must interrogate the supplier's pricing structure. We often see quotes where the "unit price" looks low, but the "NRE" (Non-Recurring Engineering) or setup fees are astronomical.
Scrutinizing the NRE and Setup Fees
You need to understand what you are paying for. Is the setup fee for a one-time fixture creation? If so, do you own that fixture? Can it be reused for repeat orders next year? A fair supplier will amortize these costs or charge them once. An unfair supplier will charge a "setup fee" for every single run, even if they already have the program and fixtures ready.
The "Setup-to-Run" Ratio
Ask the supplier about their efficiency ratios. Lean manufacturers track the ratio between time spent setting up the machine and time spent actually welding. If their setup takes 4 hours for a 1-hour weld job, their pricing will be high. Suppliers who use the modular systems we discussed earlier will have much lower setup costs because they aren't building new tools from scratch.
Raw Material Procurement Strategy
Another hidden cost driver is material minimums. If you need 50kg of a specific alloy, but the mill only sells 500kg coils, who pays for the extra? A strong HMLV supplier usually has a network of stockists or holds "safety stock" of common materials (like standard 304 sheet or mild steel tube) to serve multiple clients. This allows them to sell you just what you need without passing on the cost of the unused bulk material.
Evaluating Commercial Viability
Use this checklist to evaluate if their pricing model fits HMLV:
| Cost Element | Question to Ask | Desired Answer |
|---|---|---|
| Minimum Order Quantity (MOQ) | "Do you have a strict MOQ?" | "No, but we have a minimum lot charge of $X." (This is better than a forced unit count). |
| Tooling Ownership | "If I pay for the fixture, can I move it to another supplier?" | "Yes, you own the tooling." |
| Material Sourcing | "How do you handle small material buys?" | "We consolidate orders or use distributors for cut-to-size material." |
| Repeat Orders | "Do I pay the full setup fee on re-orders?" | "No, re-orders only incur a machine prep fee, not the full engineering cost." |
By clarifying these points upfront, you ensure that your high-mix orders remain profitable and that you aren't subsidizing the supplier's inefficiencies.
Conclusion
Successfully sourcing high-mix, low-volume welding parts requires finding a partner who values agility over sheer volume. By auditing their modular fixturing, validating their digital quality systems, and ensuring their engineering team offers true DFM support, you can secure a supply chain that delivers custom precision without the delays of rigid mass production.
