I once received a shipment that matched my drawing’s dimensions—but failed on surface finish and salt spray test. That’s when I realized: inspection is more than just measuring length.
When importing custom metal parts from Vietnam, the inspection standards typically include a mix of international technical requirements, supplier agreements, and recognized sampling procedures like AQL under ANSI Z1.4 or ISO 2859. You must define all critical inspection items upfront, or they will be skipped.
Most problems I’ve seen came from assumptions—not clear standards. Let me walk you through how to define inspections that protect your quality, deadlines, and customer trust.
What incoming‐material inspections should you require from Vietnamese suppliers?

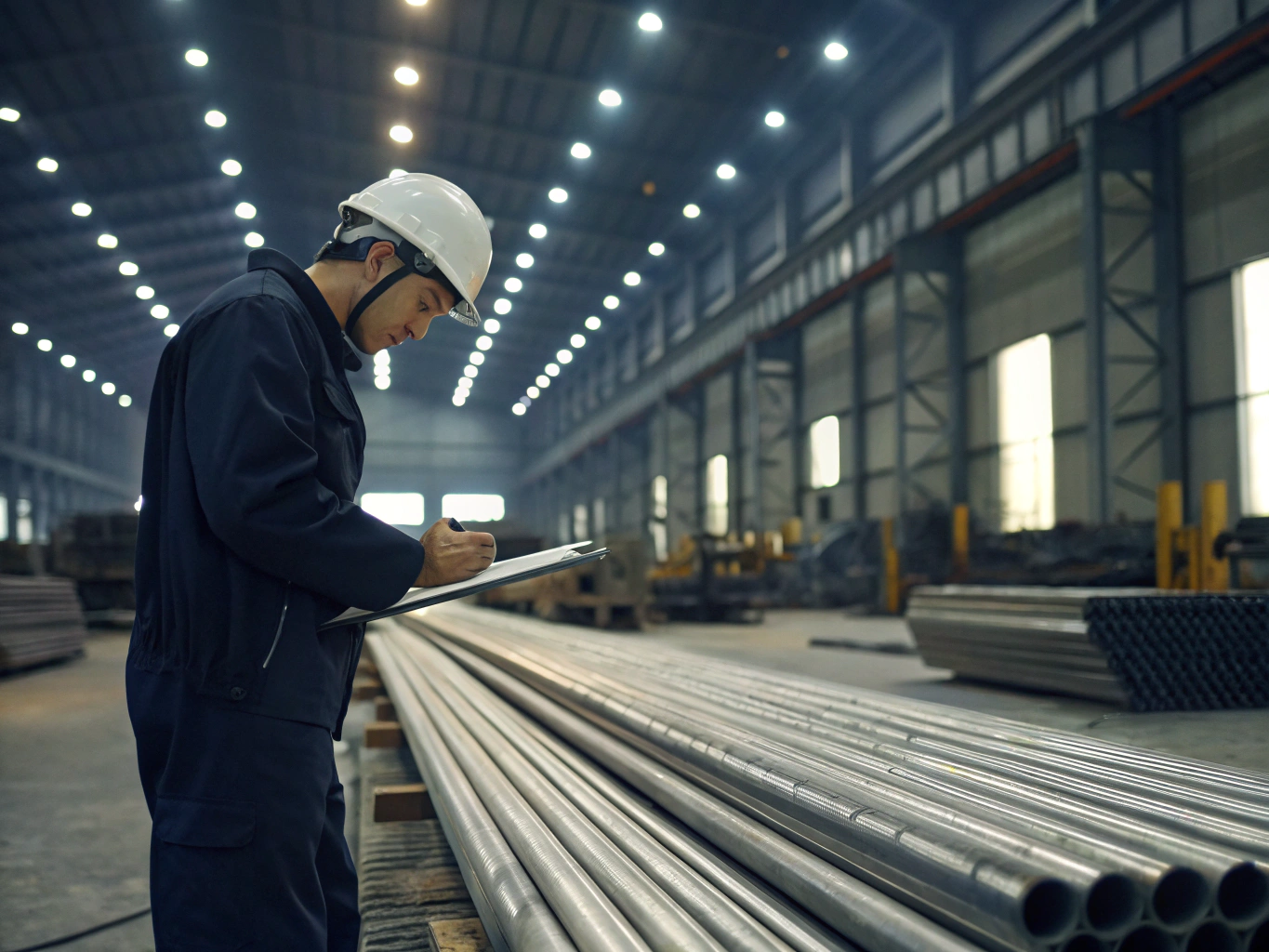

I’ve seen material certificates that looked official—until I noticed the material grade was wrong. That’s a mistake you catch before production starts.
For incoming material inspections, you should require your Vietnamese suppliers to verify raw materials through certificates and cross-check actual grades, heat numbers, and mechanical properties against your specification.
Why Incoming Material Checks Matter
The quality of your finished metal parts depends on the materials used. A supplier might substitute lower-grade materials unless you define and verify these checks in advance.
They should follow standards such as AQL 1, ANSI Z1.4 2, and ISO 2859 3 where applicable.
Key Material Inspection Points
| Inspection Item | What to Check | How to Verify |
|---|---|---|
| Material Grade | Matches drawing/spec (e.g., SS304, AL6061) | Material Test Certificate (MTC) 4 |
| Material Standard | ASTM, JIS, EN, DIN, etc. | Certificate + review document header |
| Heat Number Traceability | Batch number, melt origin, traceable to the actual piece | Ensure heat numbers on MTC and part label match |
| Surface Condition | Rust-free, no scratches or corrosion | Visual + photographic records |
| Hardness / Tensile Strength | Required by spec (e.g., HRC, MPa) | Factory test report or third-party test lab |
Dive Deeper: Best Practices
- Always ask for MTCs (material test certificates) in English.
- Cross-check material standards in your drawing (e.g., “ASTM A276 Type 316”) with what’s listed on the certificate.
- Don’t rely on certificates alone—request spot checks using handheld XRF analyzers if feasible.
- If your parts are load-bearing or critical (e.g., aerospace, medical, structural), require third-party verification.
Which in‐process and final inspections are typical for custom metal parts?
Some suppliers only perform a visual check after production. That’s not enough if you care about tolerances, threads, or plating thickness.
Typical inspections include First Article Inspection (FAI), In-Process Inspection (IPQC), and Pre-Shipment Inspection (PSI). Each step targets different risks in the production timeline.
Three Phases of QC Inspections
1. First Article Inspection (FAI)
Performed before full production starts. Confirms the first part meets all specs.
| Checkpoint | Description |
|---|---|
| Dimensions | Measured on all critical features |
| Material | Confirmed via certificate + hardness/XRF |
| Finish | Surface roughness or coating verified |
| Marking | Part number / revision confirmed |
| Documentation | Signed-off by buyer before mass production |
2. In-Process QC (IPQC)
Done during production to catch early issues.
- Sampling of parts every X pieces (based on batch size)
- Focuses on key features, fixtures, tooling wear
- Helps reduce waste or rework

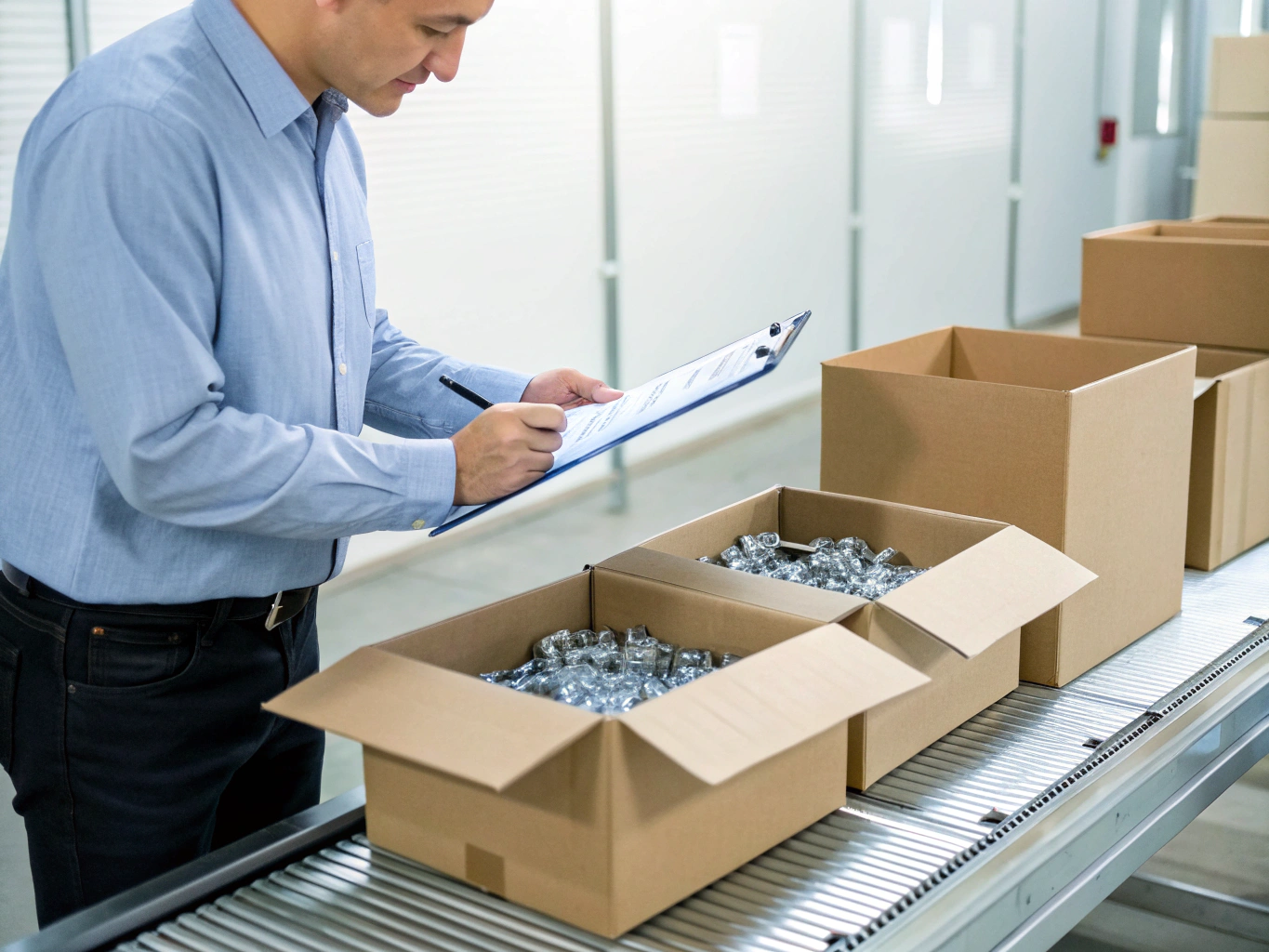

3. Pre-Shipment Inspection (PSI)
Final check before packing/loading.
- Sampled using AQL plan
- Includes measurements, functionality, packaging, labeling
Dive Deeper: Real Factory Practices
In Vietnam, many factories work with third-party inspectors like V-Trust, HQTS, Tetra Inspection, or QIMA. They follow structured templates based on your requirements and international norms like:
- ISO 2859 / ANSI Z1.4 for sampling
- ISO 2768 8 for general tolerances
- ASME B46.1 5 for surface finish
- Internal SOPs for welding, heat treatment, etc.
How should you define Acceptable Quality Levels (AQL) and sampling plans?
The first time I saw an “AQL 2.5 Level II” report, I didn’t know what it meant. Now I use it to negotiate exactly how many pieces get measured.
AQL (Acceptable Quality Level) defines how many samples will be inspected and how many defects are allowed. Use ANSI Z1.4 or ISO 2859 as your standard and specify these values in your QC instructions.
Understanding AQL in Plain Terms
- AQL helps balance inspection cost vs. quality risk.
- The inspection level (e.g., General Level II) defines how many samples to inspect.
- The AQL value (e.g., 1.0, 2.5, 4.0) defines how many defects are allowed in the sample.
AQL Sample Table (Example)
| Lot Size | Inspection Level | AQL | Sample Size | Accept | Reject |
|---|---|---|---|---|---|
| 500 pieces | General Level II | 2.5 | 80 pcs | 5 | 6 |
| 2000 pieces | General Level II | 1.0 | 125 pcs | 2 | 3 |
| 8000 pieces | General Level II | 4.0 | 315 pcs | 14 | 15 |
Dive Deeper: When AQL Doesn’t Work
Sometimes, AQL sampling is too heavy, especially when the part is labor-intensive to measure. In that case:
- Negotiate a reduced sample size but request 100% inspection on critical features.
- Set separate rules: “Full check of all holes and threads. Sampling check on visual defects.”
- For important orders, use a tightened inspection level or dual-stage sampling plan.
Tip: Always define AQL in your PO, and state whether it’s used for dimensional checks, appearance, or functional tests.
What international standards (ASTM, ISO, etc.) should you reference in your inspection clause?
I once left the spec as “good surface finish.” The supplier guessed Ra 6.3 was good enough. My customer disagreed.
You should reference international standards in your inspection clause to ensure consistency, especially when it comes to dimensional tolerances, material properties, surface finish, and coating.
Common Standards You Should Know
| Standard | Purpose | Use Case Example |
|---|---|---|
| ISO 2768-1 8 | General tolerances (linear, angular) | CNC parts with ±0.1 mm features |
| ISO 1101 9 | Geometric tolerancing (GD&T) | Flatness, parallelism, concentricity |
| ISO 4287 / 1302 | Surface roughness (Ra, Rz, symbols) | Machined surface finish (e.g., Ra 1.6) |
| ASME B46.1 5 | U.S. equivalent for surface texture | Metal castings or ground finishes |
| ASTM B117 6 | Salt spray testing (corrosion resistance) | Zinc-plated parts |
| ISO 9227 7 | Salt fog test (international equivalent) | Marine parts or hardware |
| ISO 6508 / ASTM E18 10 | Rockwell hardness testing | Heat-treated steel |
| ASTM D3359 | Adhesion test (cross hatch) | Powder coating, painting |
| ISO 2859 / ANSI Z1.4 | Sampling plan | AQL-based inspections |
Dive Deeper: How to Use Them Correctly
- Don’t just name the standard—link it to your drawing or PO:
“Surface finish shall be Ra ≤ 1.6 µm per ISO 1302.”
“Salt spray resistance 96 h per ASTM B117.” - Always clarify which tolerance class you use:
ISO 2768-m (medium), ISO 2768-f (fine), etc. - If your product goes into a regulated sector (e.g. aerospace, automotive), consider referencing IATF 16949, VDA 6.3, or EN standards.
Conclusion
Inspection standards protect your product, project timeline, and reputation. Don’t leave it to chance—define everything clearly and enforce it consistently.
